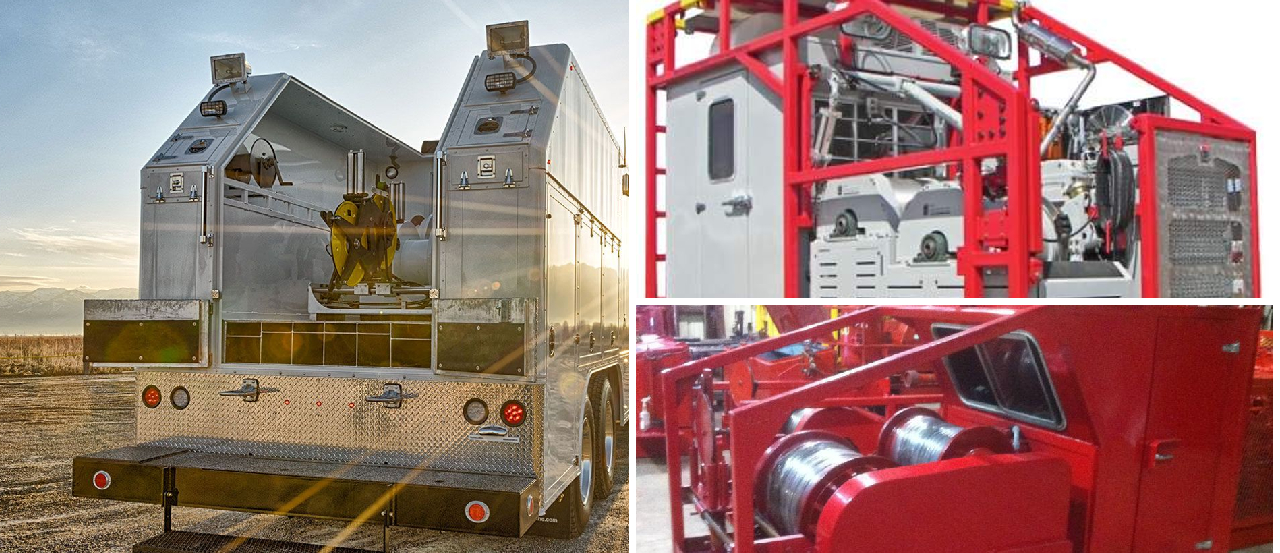

Wire line services

EBPS Wireline Services utilize high-quality downhole tools covering the following categories:

A- Downhole pressure and temperature memory gauges,

Downhole pressure and temperature memory gauge services provide invaluable data for oil and gas operations, recording crucial metrics deep within wells. These gauges offer real-time monitoring, enabling precise analysis of reservoir behavior and wellbore conditions. With their ability to withstand harsh downhole environments, they ensure accurate measurements for optimal decision-making in drilling and production processes.

B- SRO Gauges:

The Surface Readout (SRO) Gauge is designed for real-time sampling of pressure and temperature data for applications focused on production optimization, well stimulation, or reservoir development. EBPS tools have excellent gauge stability and strong transmission distance; they can send data from downhole to the surface through a single conductor wireline cable at well depths up to 7,000 meters. The SRO Box and Portable Box are designed for SRO (Surface Read-Out) gauges to complete wireline field operations or operation monitoring during PDMS (permanent downhole monitoring system) field installation.

C- Gauge Carriers:

EBPS can provide Gauge Carriers from a comprehensive range of Tubing Conveyed, Wireline Conveyed, and Coiled Tubing carriers suitable for various applications such as Frac, DST, Gravel Packing, Slickline, and Coiled Tubing operations.

Tubing Conveyed gauge carrier:

EBPS can provide a wide range of Carrier types, configurations, and sizes. The Carriers featured in the Specification data sheet are three of the most commonly supplied to our customers, but other Carrier sizes, configurations, and thread connections are available on request. If a particular specification is not available from our standard product line, then we will assist with the design and manufacture of a Carrier to suit your application. EBPS Tubing Conveyed Gauge Carriers have been designed to incorporate the smaller diameter Omega Memory Gauges, either internally or externally mounted, maximizing flow area right down to the smaller OD carriers. Our Automatic Memory Gauges are particularly suited to Gauge Carrier operations providing automatic start/stop recording and long battery life which helps to minimize operator input and allows multiple carrier runs without having to detach the gauges after each run.

Wireline Conveyed Carriers:

EBPS Wireline Gauge Carriers are built to incorporate standard oilfield thread connections and fishing necks. They are robust carriers made from hardened durable materials. They can carry up to two Memory Gauges internally and are spring-loaded to minimize shock and heavy impacts generated by wireline operations.

Frac Gauge & Carriers:

Our patented design builds the pressure sensor into the carrier so flow rates aren’t obstructed. Available in various tubing sizes, this pressure gauge is ideal for slim hole applications where space is tight.

D- CCTV camera:

EBPS Borehole CCTV survey takes a downhole look at your new or existing borehole enabling you to see your borehole casing, geology, and aquifer in real time. A mobile CCTV camera can be lowered into your borehole, to depths in excess of 1000m and into water, enabling you to see the subsurface of your borehole. Not only is this interesting for the geologist but extremely useful for the engineer; allowing them to spot problems and plan out potential workover programs.
